Real-Time Software Ultra HD Encoder with Analysis and Repair Functions

MPEGRepairHD® is a comprehensive software encoding tool that creates studio quality transport and program streams in real-time for all High Definition (HD), Cinema and Standard Definition (SD) video standards. The product includes a large variety of complementary transcoding, decoding and analyzing capabilities making it an essential tool for all involved in MPEG systems. New features.

MPEGRepairHD® is easy to use

  • Preset parameter settings for all popular video formats
  • Loadable customizable parameters enable accurate encoding for large jobs
  • Compresses frames from most file formats or directly from a video source.
  • Built in frame re-sizing, format conversion, and filtering

MPEGRepairHD® increases encode quality

  • Comprehensive parameter set changeable throughout encoding
  • Constant and variable bit-rate modes
  • Support for all HD and digital cinema standards

MPEGRepairHD® increases project productivity

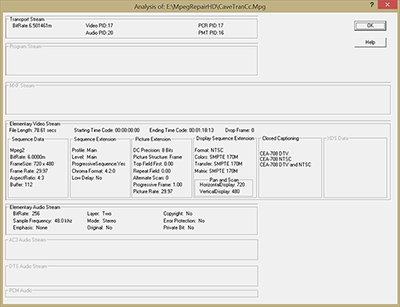

  • Quick stream properties display.
  • Stream transcoding and re-purposing.
  • Update stream headers (GOP time, field dominance, aspect ratio) without re-encoding.
  • Add Closed Captioning, SCTE Line 21 CGMS data, and Pan and Scan offsets with or without re-encoding

MPEGRepairHD® includes unique utilities (147 ways to use MPEGRepairHD®)

  • Instant bit-map to MPEG conversion.
  • Logo insertion

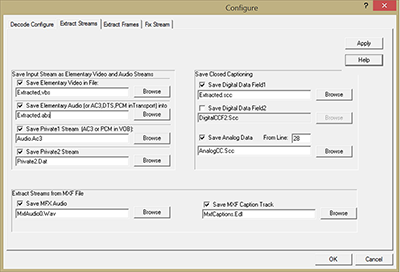

  • Stream splitting and frame extraction
  • GOP accurate stream editing


Video Capture Equipment

  • Integrates with all DV boards, frame grabbers, video editors and animation programs that output to AVI format
  • Inputs frame from digital disk recorders
  • Grabs frames from Windows video device

Encode Output

  • ransport or program stream multiplexing
  • Bit-rates from 1 Kbits/sec to 500 Mbits/sec
  • Frame rates from 1 frame/sec. to 60 frames/sec
  • IPB, IP, or I-frame only streams
  • Results of pre-procession without encoding
  • Recommended bit-rate to log file in analysis mode
  • List of detected scene changes to scene change file
  • Encoding statistics to log file
  • Current parameter configuration

Operation Systems

  • Runs under Windows 7, XP, Windows 2000
  • Manages files larger then 8 Gbytes


  • Runs on any 386 or greater processor
  • Optimized for SSE and multi-processing systems

Encode Input

  • TGA, BMP, AVI, MOV and YUV and YUV
  • Fields and frames in sizes from 16x16 to 16384 x 16384 pixels
  • Single frame or frame sequence to produce a longer stream
  • Sequences stored on multiple drives
  • Output of files from other programs or drag and dropInitialization file containing session specific parameters
  • EDL file describing scene by scene parameters
  • Scene Change file containing known scene changes


  • Precise floating point computations with 24-bit color accuracy
  • Inputs MPEG2 HD transport, program, DVD VOB or MPEG1 steams

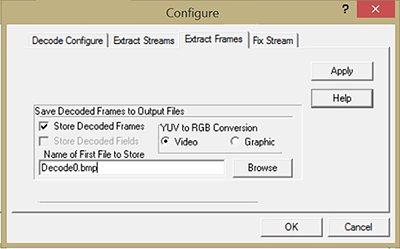

  • Stores frames as YUV, TGA, or BMP files
  • Decodes elementary systems processing transports or VOB files


  • 24-bit color frame windows with zoom and roam
  • Frames and fields visible at input, motion compensated, DCTed, compressed, and error states
  • Graphic windows displaying buffer fullness and encoding statistics

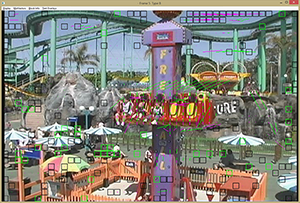

  • Motion vectors, block decision types, quantization values

Encode Preprocessing

  • Standard or user defined 7x7 kernel filters
  • Full frame or regional filtering
  • HD, D1, VGA, or SIF down sampling
  • Logo or graphic animation mixing with video
  • Video or graphics RGB conversion
  • Half D1 to D1 up sampling

User Help

  • Fly-over Hints
  • Comprehensive Users Manual with expert encoding hints


  • High, Main, and Low Level encoding
  • High, Main, and Simple Profile encoding
  • 8-11 bit selectable DC precision
  • Zigzag and Alternate DCT scan
  • Dual Prime, 16x16, and 16x8 field and frame motion estimation
  • Temporal down-sampling to 1 frame per second
  • Adjustable IPB frame patterns (ie, M and N values)
  • Selectable sequence header insertion rates
  • Modifiable start time codeTarget decoder buffer sizes from 1 to 1000 vbv
  • Audio layer 2 encoding
  • Constant bit-rate or constant quantization
  • 4:2:2 and 4:2:0 Chroma formats
  • Compresses from 16x16 to 16384 x 16384 pixel frame sizes
  • Supports all 18 HDTV formats
  • Scene by scene bit-rate change capability
  • Automatic or manual GOP forcing
  • Segment encoding to specified buffer states
  • Encoding precision control
  • Operator control of regional quantization within selected frames
  • Closed caption text insertion
  • Complete control over encoding precision to optimize session for highest quality or highest encoding speed

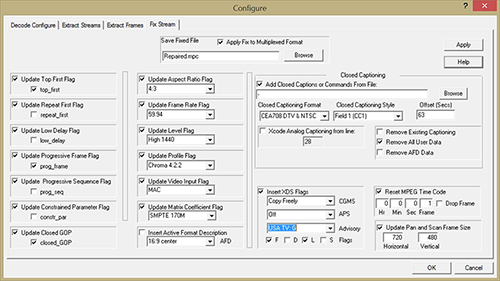

Stream update without re-encoding

  • Add closed captioning
  • Add SCTE Line 21 data (E.G. CGMS, APS)
  • Add Pan and Scan offsets Resync time code
  • Update aspect ratio, frame rate, level profile, and matrix coefficient values
  • Update top_field_first, repeat_first, low_delay, prog_frame_sequence, constrained parameter, closed GOP flags

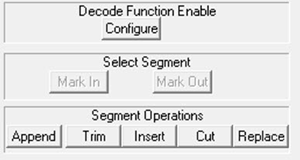

GOP Editing

  • Append two streams
  • Trim from start or end of steam
  • Cut section from stream
  • Insert new section into stream
  • Replace stream section
